Dextrus Installation from Marketplace AMI

This document provides the steps to create the Dextrus Application from Marketplace AMI:

1. From the AWS console, search for EC2 and select the EC2 option from the results, or else you can click the EC2 option from the recently visited info section.

2. On the left pane, click Instances.

3. Click Launch instances on the top right corner of the Instances page.

4. To create a new EC2 instance, type a name in the Name field.

5. Scroll down the same page where you can see the “Choose an Amazon Machine Image (AMI)” section.
6. Search for “Dextrus” keyword in the AMI search box, then you can find Dextrus AMI under AWS Marketplace AMIs tile.
7. Click the Select button.

8. Click the Continue button.

9. You have now been directed to the Launch Instance page again, where you can select the instance type of the EC2 Instance. (Recommended m4.4xlarge).

10. On the same page, under the key pair section, you can select any existing key pair on your account or create a new key pair.

11. Under the Network settings, select the appropriate option against each security groups.

12. You can use the default storage as per the AMI, or else you can increase the volume as per your requirement.
13. On the summary page, verify the details and click the Launch instance button.

14. The instance will launch in a few minutes, now navigate to the Instances page, and search for the Instance you have just created.

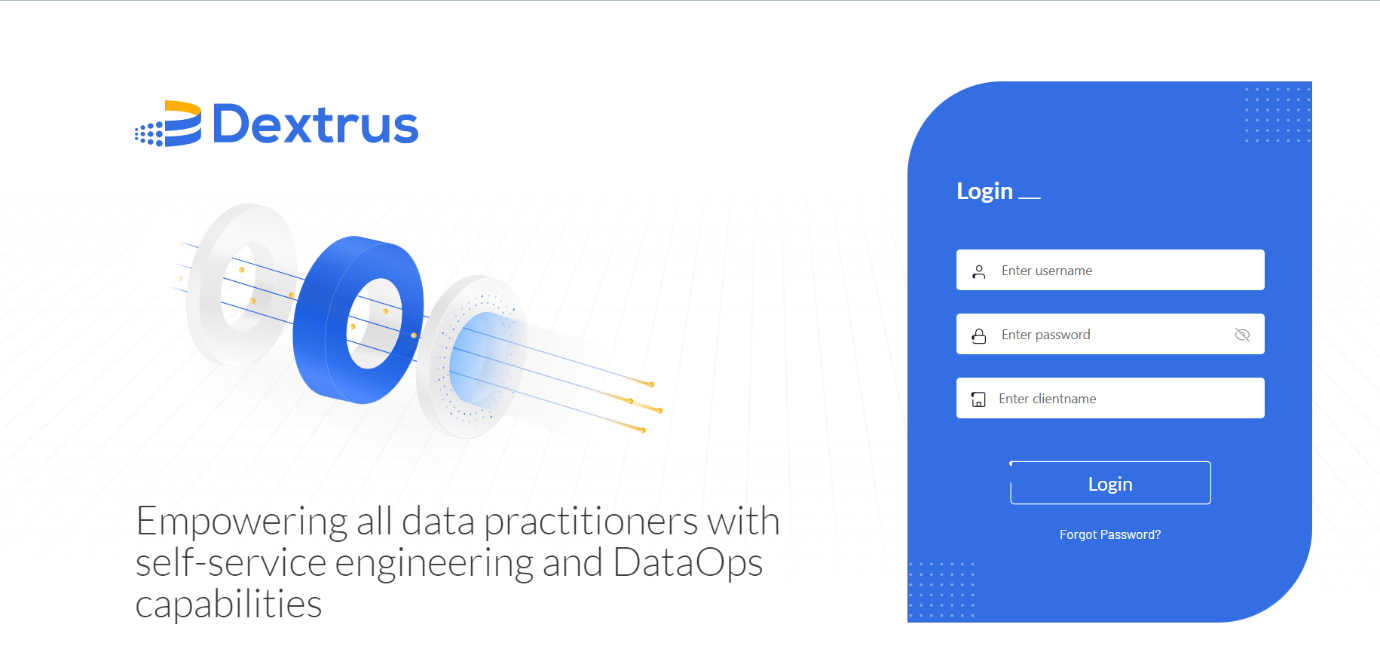

15. Copy the Public IP of the instance and paste it into any browser, then type {public_ip:9091}/Dextrus, and then you can view the Dextrus Login page.
